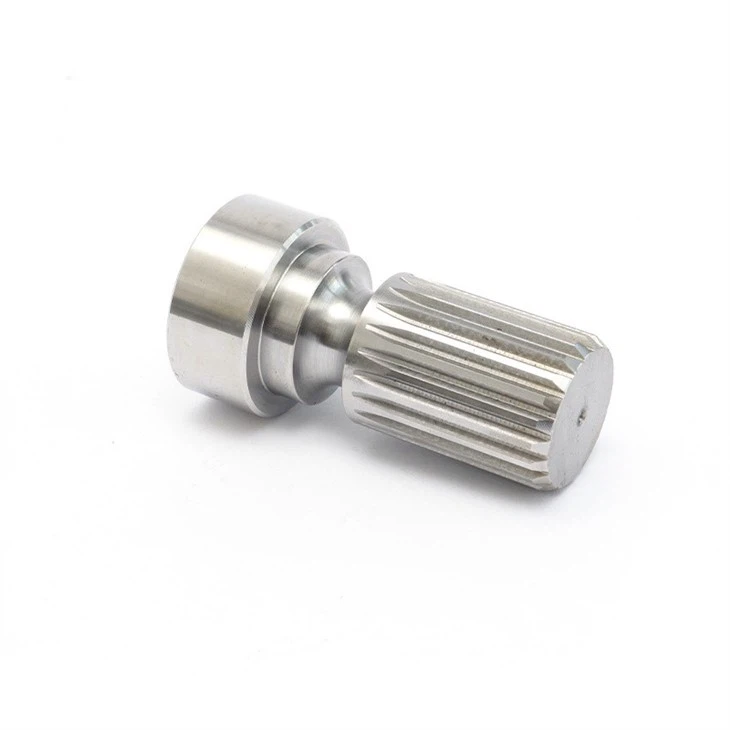

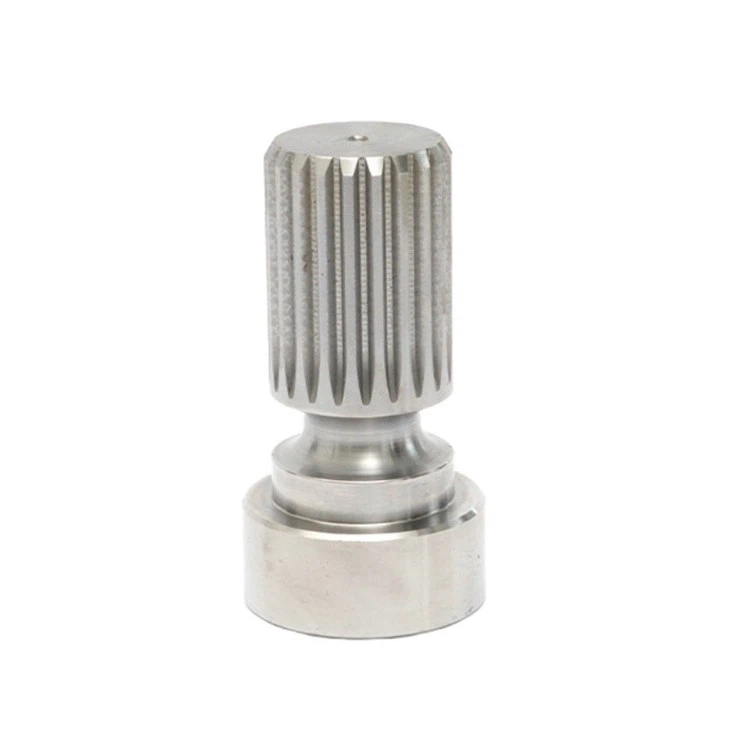

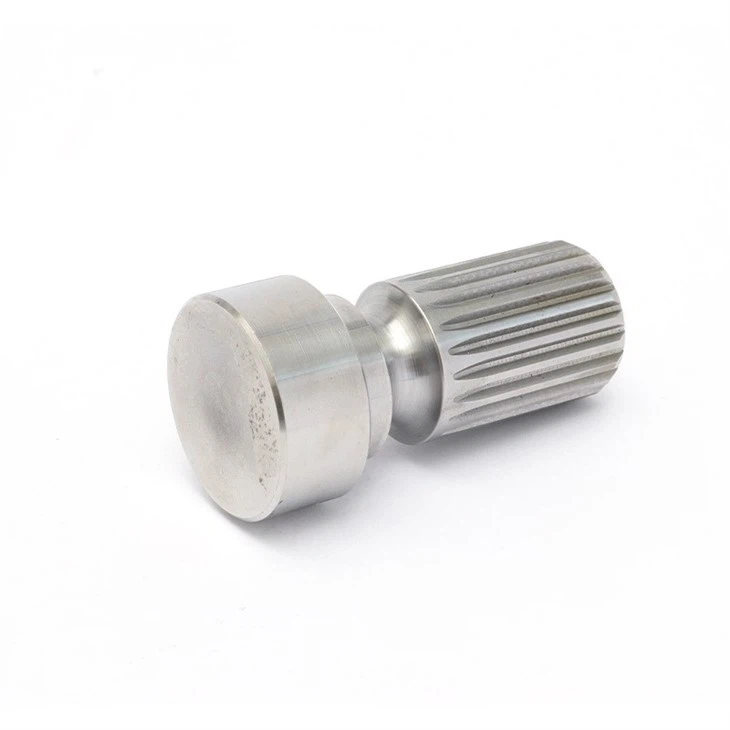

CNC Machining Stainless Steel Spline

As a professional casting and machining factory based in Ningbo, China, we specialize in crafting high-quality CNC Machining Stainless Steel Spline—a core component for industrial power transmission, tailored to meet global clients’ strict performance demands. Our integration of casting expertise and precision machining ensures every spline delivers reliability, durability, and consistency.

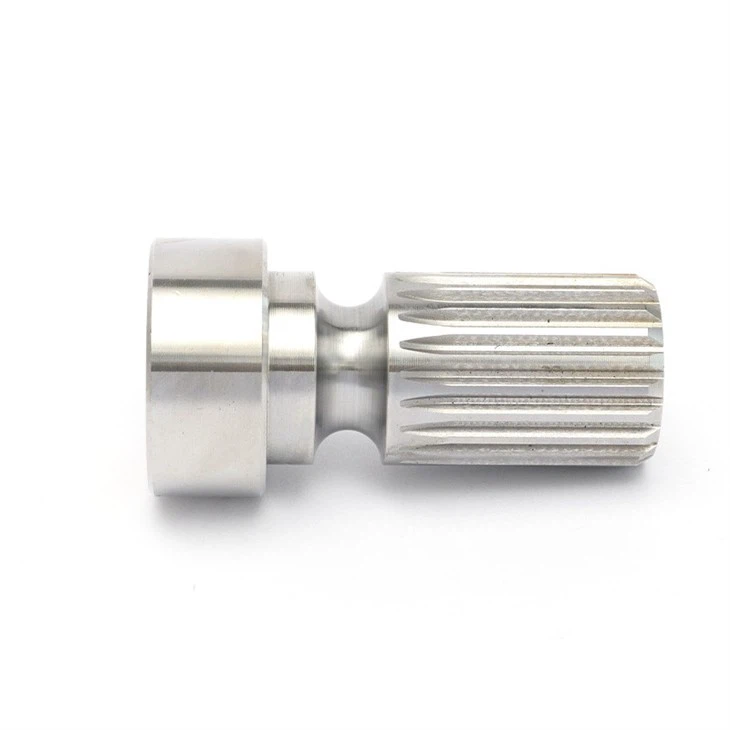

CNC Machining Stainless Steel Spline - Image 2

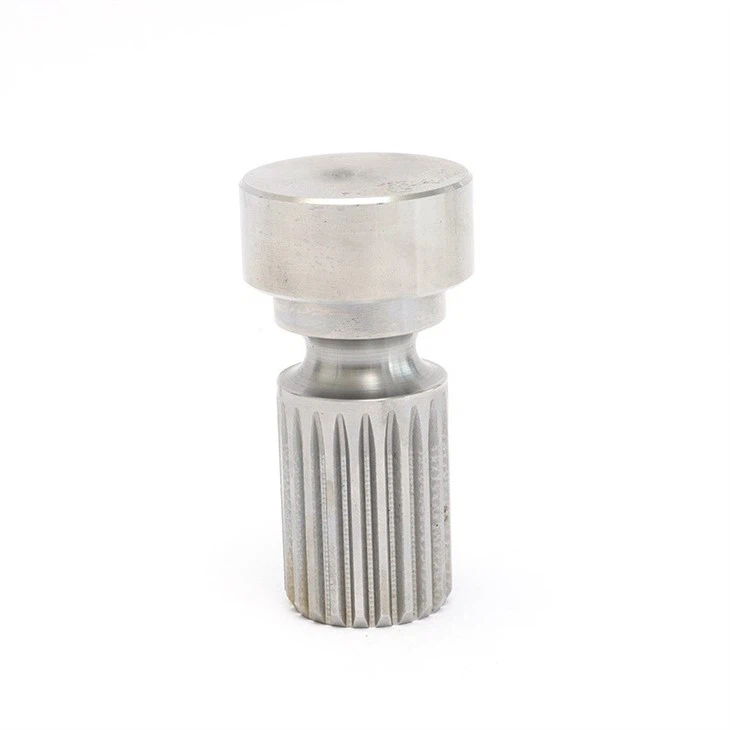

CNC Machining Stainless Steel Spline - Image 3

CNC Machining Stainless Steel Spline

A spline is a mechanical shaft with evenly spaced ridges that transmit torque without slipping. By CNC Machining Stainless Steel Spline parts from 304, 316L or 17-4PH bar stock, we reach Ra 0.8 surface finish and ±0.01 mm profile accuracy, guaranteeing silent, backlash-free power transfer in pumps, gearboxes and drive axles.

Product Features

Material: 304/316L/17-4PH stainless steel for superior corrosion resistance
Module: 0.5–5 mm, up to 500 mm length, 6–120 teeth
Tolerance: DIN 5480/ISO 14 standard, ±0.01 mm true-position accuracy
Surface: Ra 0.8 µm as-machined, optional electropolish or DLC coating

Benefits

Marine-grade stainless steel prevents rust in humid or chemical environments.
Precise CNC Machining Stainless Steel Spline geometry increases contact area, cutting wear by 30 %.
One-piece machining eliminates welding, boosting fatigue life to >10⁶ cycles.
Ready-to-install keyway and thread features reduce customer assembly time.

Applications

Hydraulic motors and pumps
Electric-vehicle drive shafts
Food-processing conveyors
Marine propulsion systems

Technical Specifications

OD:	6–80 mm
Length:	≤500 mm
Teeth:	6–120 involute or straight
Heat treatment:	Solution annealed, H900 aged 17-4PH
Testing:	100 % dimensional CMM, 20 % magnetic-particle crack check

Quality & Certifications

IATF 16949, ISO 9001 and PED 2014/68/EU certified. Each CNC Machining Stainless Steel Spline lot carries material mill certificates and dimensional reports.

Ordering Process

Send drawing or sample → 2. Quote within 24 h → 3. DFM feedback → 4. 30 % deposit → 5. Production & QC → 6. Photos & video approval → 7. Balance & ship.

FAQ

Q1:	Can you machine internal splines?
A1:	Yes, we offer both internal and external CNC Machining Stainless Steel Spline services up to 300 mm depth.
Q2:	Minimum order quantity?
A2:	50 pcs for standard sizes; prototypes accepted.
